The All-in-one Key Programming & Advanced Vehicle Diagnostic Bundle. A reliable partner for your repair business.

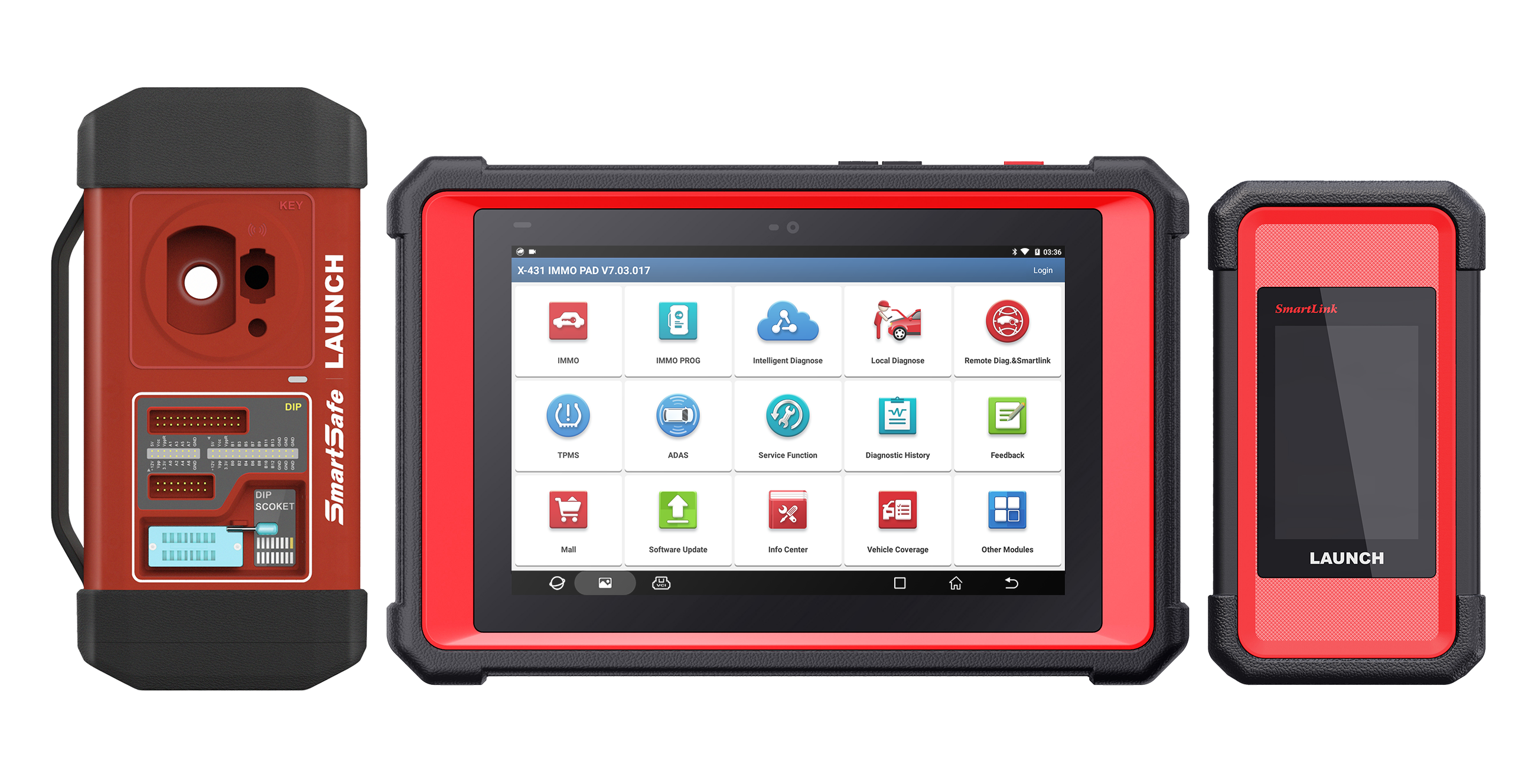

Launch X-431 IMMO PAD V2.0 (3 Year)(Remote Diag)
Intelligent Diagnostics
1. All systems OE-Level diagnostics for over 110 vehicle models.
2. Exceptional full functionality includes comprehensive OBD II diagnostics, bi-directional control, ECU coding & programming, etc.
3. Support CAN/CANFD/DoIP communication protocols and J2534 communication standards.
4. Exclusive Smartlink remote diagnosis.
5. 25 advanced service functions.
6. Pre-scan and post-scan diagnostic report.
7. Expand diagnostic coverage via “Mall”.
8. Optional ADAS calibration function with the X-431 ADAS calibration tools.
9. Optional TPMS function with X-431 TSGUN.
Advantages
1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
3. Supports ECU replacement for fifth-generation Audi (0AW/0B5) gearboxs.
4. Supports reading, writing & cloning of the ECU for fourth-generation VW UDS engines.
5. Supports BMW E chassis 8HP gearbox ECU program wiping.
6. Support Mercedes(Engine, Gearbox, EIS) and BMW(Gearbox) ECU anti-theft data erase.
7. Supports 170+ Bosch, 10+ Siemens engine ECU and 18+ gearbox ECU BENCH mode clone.
- Bosch engine ECU: ME17，MED17，EDC17，MEVD17, etc.
- Siemens engine ECU: BMW(MSV90, MSD87, MSD85,MSD81, MSD80), Mercedes(SIM271DE2.0,SIM271KE2.0), VW/Audi(SIMOS8.6x,SIMOS8.5x,SIMOS8.4x), etc.
- Gearbox ECU: DQ200-MQB, DQ250XX, DL501 Gen1,VL381,VGS2- FCVT,VGS-FDCT,DQ400E,DL501 Gen2,DL382-7F,VGS2-FDCT,9G_Tronic,DQ380,DQ381, DQ500,AL551,AL450,AL552,AL951,8HPXX, etc.
Functions
1. Supports key matching/copying, anti-theft IC reading & writing, and ECU reading & writing, etc.
2. Anti-theft modules replacement
Support anti-theft modules replacement of BMW, Mercedes-Benz, VW/Audi, Honda, Nissan, Hyundai, Kia, BYD, Changan, Wuling Baojun, GAC, SAIC Maxus, Great Wall Motor, Chery Car, Dongfeng Fengxing, JAC Passenger Car, etc
3. Anti-theft password reading
Supports the anti-theft password reading of Peugeot Citroen, GM, Nissan, Hyundai, Kia, Chery Cars, Dongfeng Fengxing, JAC Passenger Cars, etc.
4. Key Matching
Support key matching of Ford, GM, Mercedes-Benz, BMW, VW/Audi, Porsche, Peugeot Citroen, Land Rover Jaguar, Honda, Toyota, Nissan, Hyundai, Kia, BYD, Changan Automobile, Wuling Baojun, Great Wall Motors, Chery Cars, JAC Passenger Cars, etc.
X-431 IMMO PAD Tablet
Processor
2.0GHz, Octa-Core
Operation System
Android 7.1
Memory
4GB
Storage
64GB
Battery
9360mAh
Display
10.1'', 1920*1200
Camera
Front 8MP, Rear 13MP
Protection
IP65
WIFI
2.4GHz/5GHz
Interface
TYPE A *1 & TYPE C*1
Working Temperature
0~50℃
Dimension
320 x 211 x 46mm
Smartlink C VCI
Display
3.97“ single-touch screen, 320*480
Memory
256MB
Storage
8GB
Remote Communication
WIFI / Ethernet
Working Voltage
DC 9V – 36V
USB
Type B USB2.0
Power Consumption
<6W
Work Temperature
0~50℃
Dimension
204 * 110 * 45mm
X-PROG 3
Interface
DB26, DB15
Input Voltage
DC12V
Input Current
500mA
Working Temperature
0~50℃
Storage Temperature
-20~70℃
Vehicle Key Slot
To place car key for RF defection
DB26
Used to connect to each anti-theft cables
Infrared slot for Benz key
Used to place the Mercedes-Benz infrared key to perform the key matching function
Key IC hole
Used to place the key chip to perform the key matching function
Status Indicator
Power supply indicator lamp
DIY Slot
Used to connect the anti-theft ECU pin through the cable to read and write data
Locker
To tighten loose EEPROM board
DC 12V
Used to connect to the DC12 power supply
DB15
To connect with vehicle’s DLC
EEPROM Slot
To insert EEPROM board
